Blueprints are created when taking snapshots. When taking a snapshot from a running or suspended environment, an authorized user can select between creating a new snapshot for an existing blueprint or creating a new blueprint.
To create a new blueprint:
- Click the Infrastructure button.
- Click the Environments List tab from the left menu and select the environment for which you want to capture a snapshot. Note that the environment needs to be active.

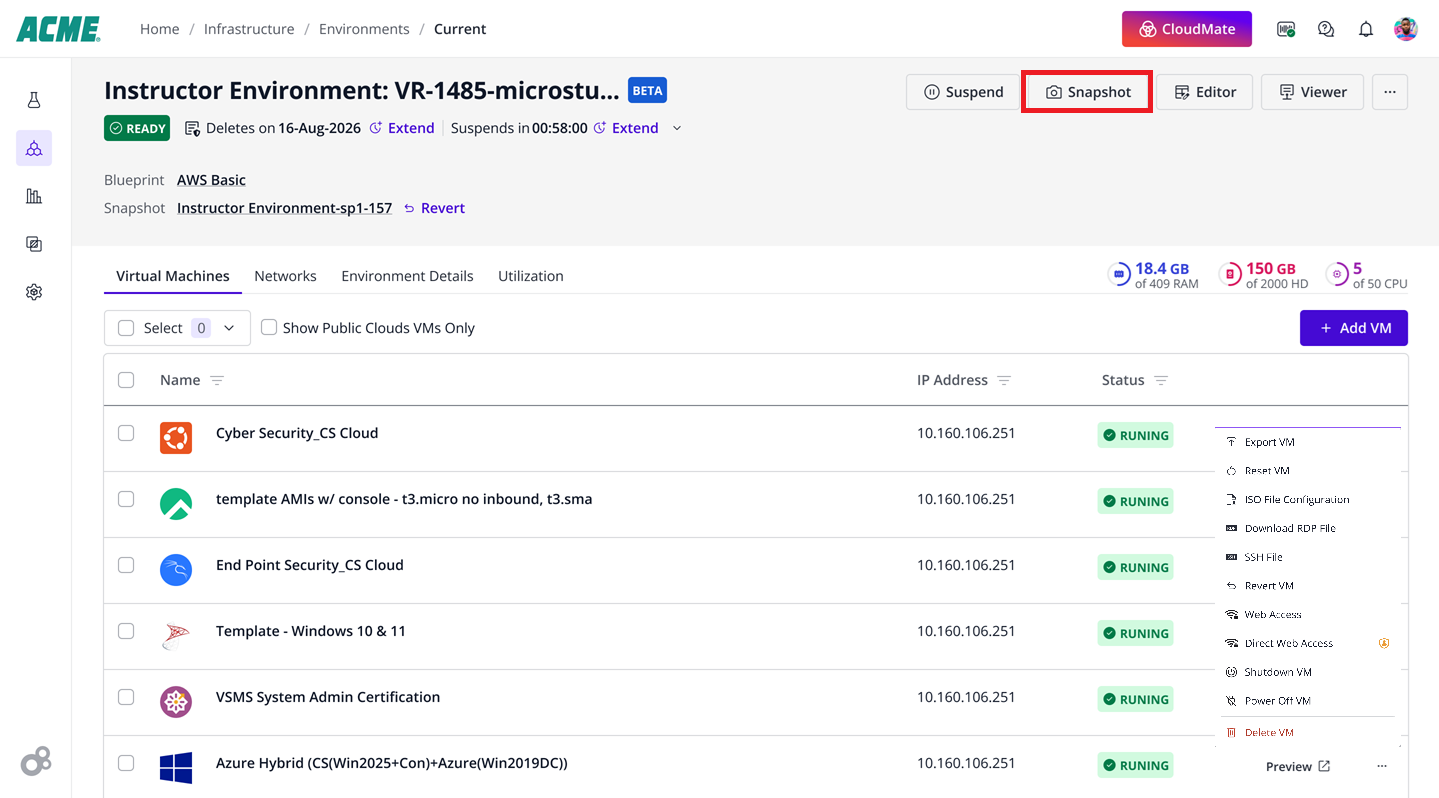

- Click the Snapshot button at the top right, as shown below:

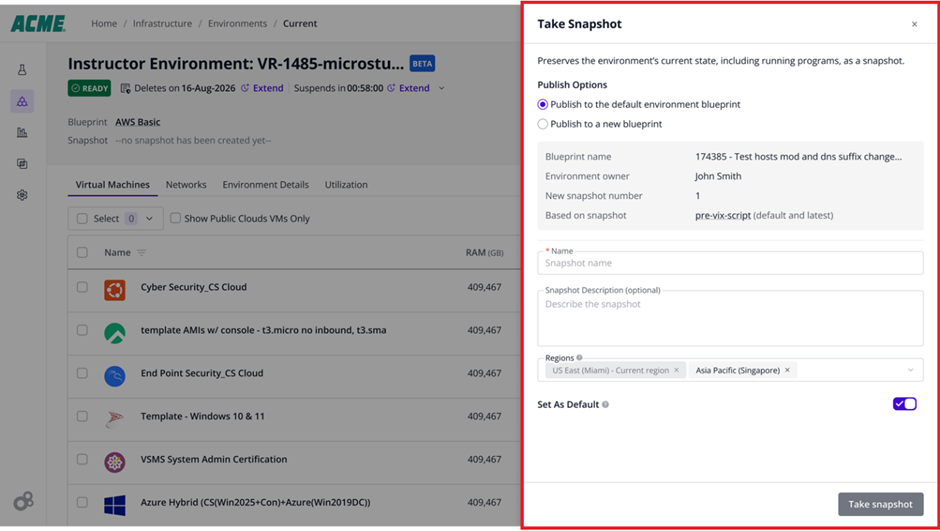

The following is displayed:
- Select the Publish to the default environment blueprint option.
Alternatively, select the Publish to a new blueprint option, which will create a new blueprint and save the snapshot there.
Note: A blueprint can contain up to five snapshots.
